Description
Please call or email the office for details or a price quote.
We build and deliver this model for $8.00 per mile, per load, this covers the building on site costs.
We can email plans upon request

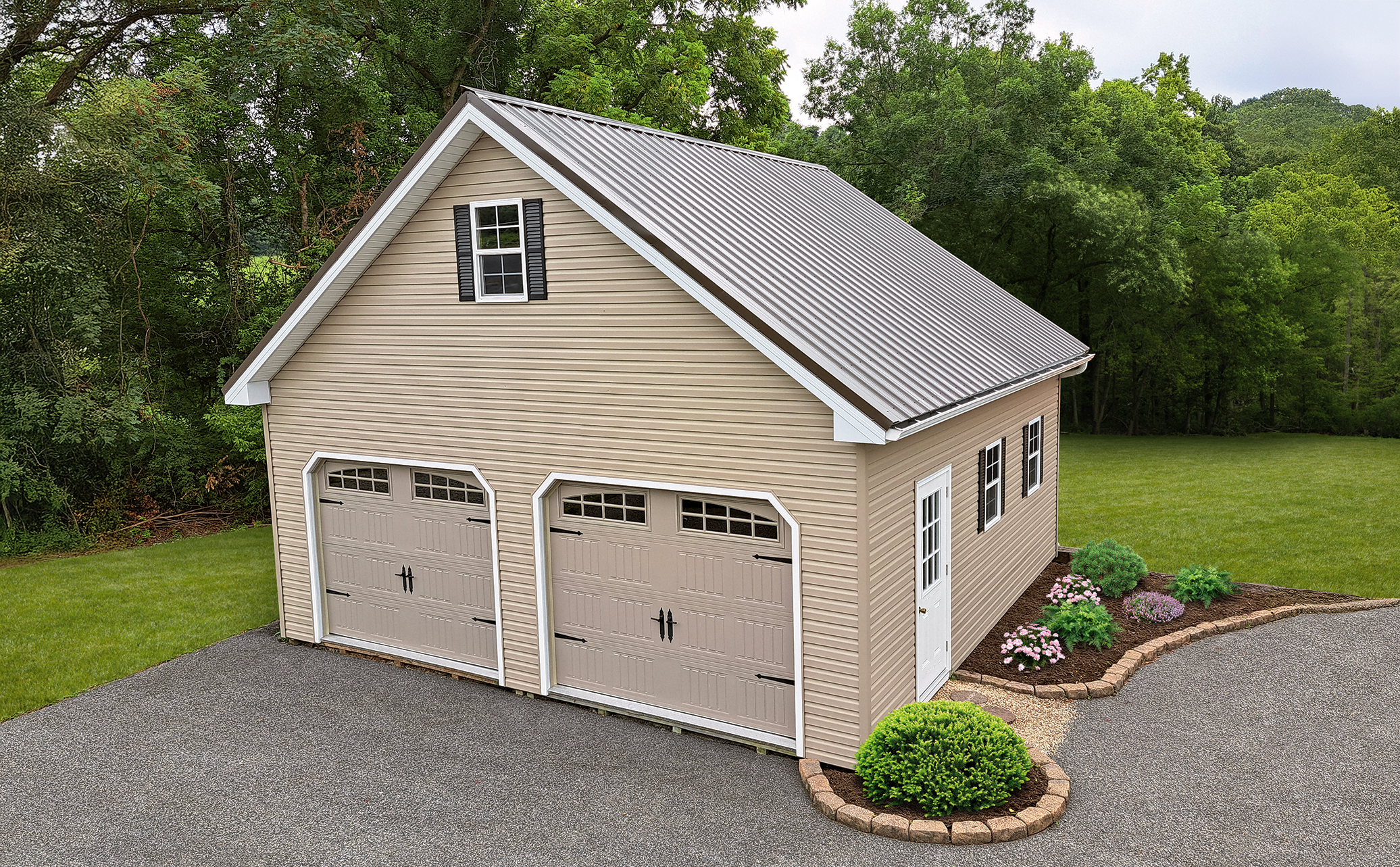

Our 2-Story Garage Comes With :
- Overall Height of 18′ 10″ (From floor level to the peak)
- Choice of Vinyl siding or painted LP Sart SideT111 siding
- 2×4 studs 16″ on center, OSB sheathing
- Lifetime Timberline Shingles, synthetic roof felt, House wrap on walls.
- First Floor:
- Ceiling Height of 8ft 10 inches
- (2) Solid 9×7 steel Garage Doors or (1) 16×7 Garage Door
- (1) Solid Pre-hung House Door
- ( Windows with Shutters are extra 78.00 each )
- Stairway to Second Floor With Hand Rail
- Second Floor
- Second Floor ceiling Height of 7ft at cross ties
- Engineered I joists at 16″ on center
- 5/8 plywood flooring
- ( Windows with shutters are extra 78.00 each )
- 2×6 Rafters at 16″ on center
- 8.5 -12 Roof pitch
- Lifetime Timberline Roof Shingles and Felt Paper
Choose one of the floor types below:
Floors are not included in list price
WOOD FLOOR:
- Treated 2×4 joist, 12”on center, 10 treated 4×4 runners, PT 3/4 plywood, @ 5.00 per sq ft.
- Your wood floor also will need a ( quote per job ) stone base @ 4.00 to 6.00 sq ft.
CONCRETE FLOOR :
- Footers with block or a monolithic floor @ 15.00 to 20.00 per sq ft ( must quote per job )
OPTIONS:
These percentages are times the base price
- For higher wall height add 5% for every foot higher

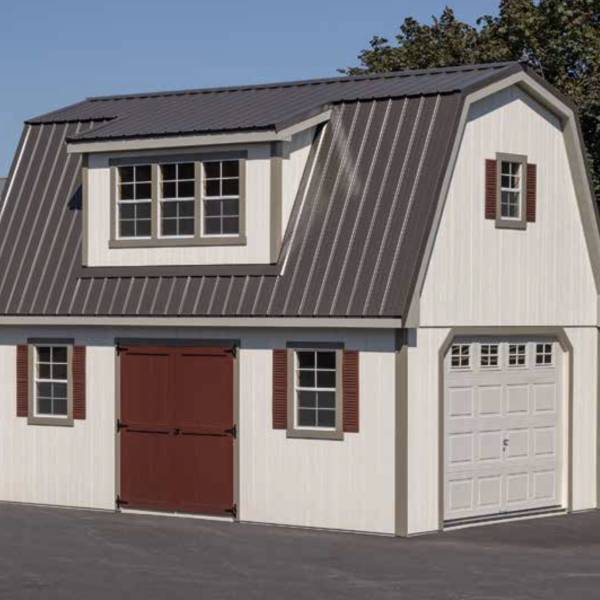

- To go to a Gambrel Barn Style Roof with attic trusses add 20%
- To use our radiant barrier sheathing instead of OSB add 3%
- To use 4 ply plywood sheathing instead of OSB add 6%
- 24×36 vinyl Double Pane Windows, cost 198.00 per window
- Insulated Garage doors, add 200.
- Windows in two Garage doors, add 400. ( your choice from catalog ) see online brochure
| Size | Painted | Vinyl |
|---|---|---|
| 24×24 | $19,179 | $23,021 |
| 24×26 | $20,601 | $24,758 |
| 24×28 | $22,958 | $27,557 |
| 24×30 | $24,137 | $28,961 |
| 24×32 | $25,118 | $30,141 |
| 24×34 | $26,405 | $31,697 |
| 24×36 | $27,684 | $33,228 |
| 24×38 | $29,061 | $34,865 |
| 24×40 | $30,617 | $36,737 |
| 24×42 | $32,400 | $38,592 |
| 24×44 | $34,281 | $41,148 |
| 24×46 | $35,712 | $42,768 |
| 24×48 | $37,102 | $44,532 |
